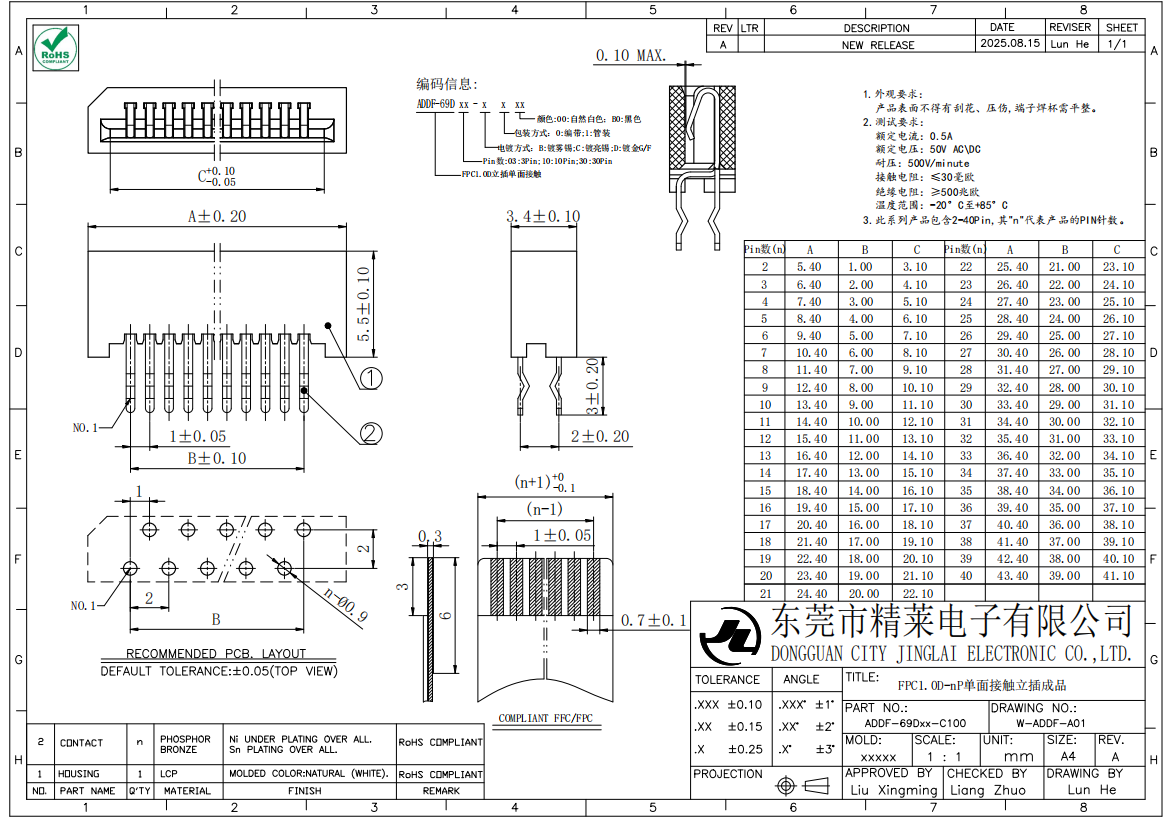

Main Specifications

SPECIFICATIONS
Voltage rating: 6~50
Applicable PC board thickness: 0.8~1.6mm
Current rating: 0.5A,AC,DC
Withstand voltage: 500V AC/min
Working Temperature: -25℃~+85℃
Insulation resistance: ≧800MΩ
Contact resistance: ≦20mΩ
Single Contact: Single Contact
MATERIAL
Contact：Phosphor Bronze Tin-Lead plated
Housing: Thermoplastic UL94-0
