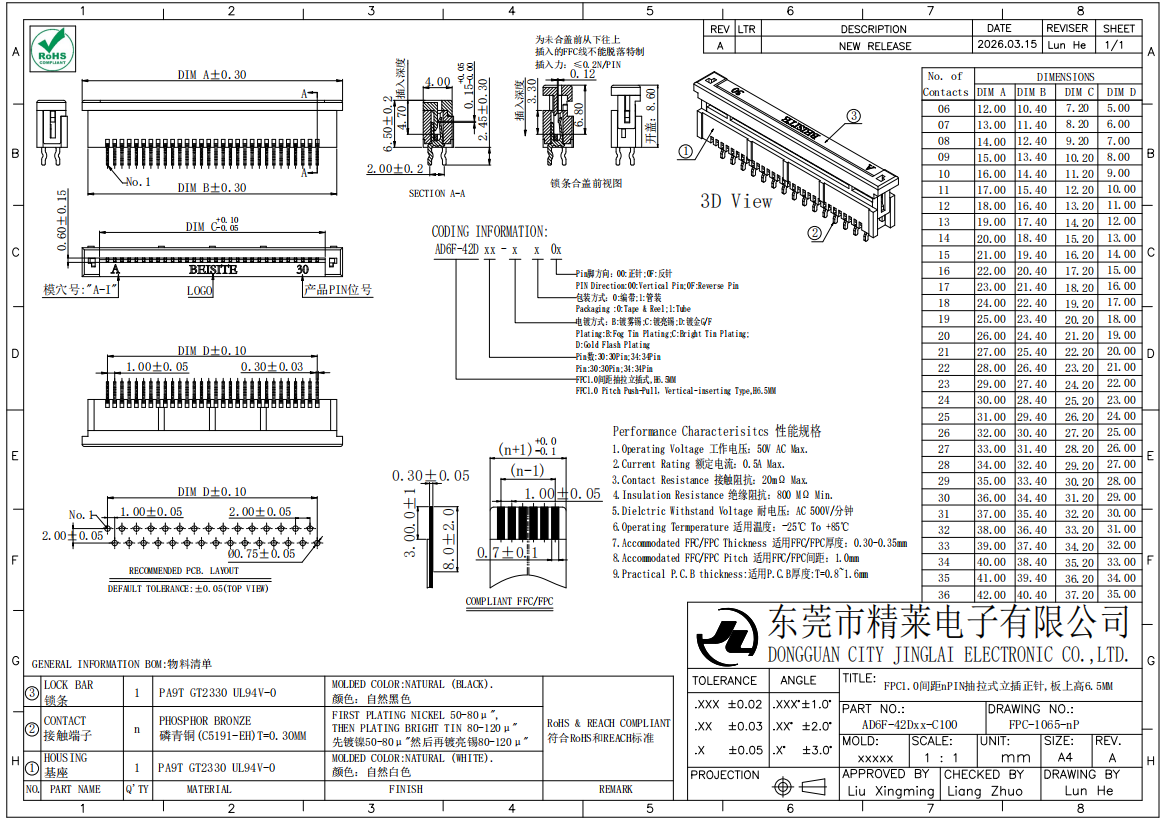

Note:

1.Operating Voltage :50V AC Max.

2.Current Rating :0.5A Max.

3.Contact Resistance :20MΩ Max.

4.Insulation Resistance :800MΩ Min.

5.Dielctric Withstand Voltage : AC 500V/min

6.Operating Termperature :-25 To +85℃

7.Accommodated FFC/FPC Thickness :0.30-0.35mm

8.Accommodated FFC/FPC Pitch : 1.0mm

9.Practical P.C.B thickness:T=0.8~1.6mm
