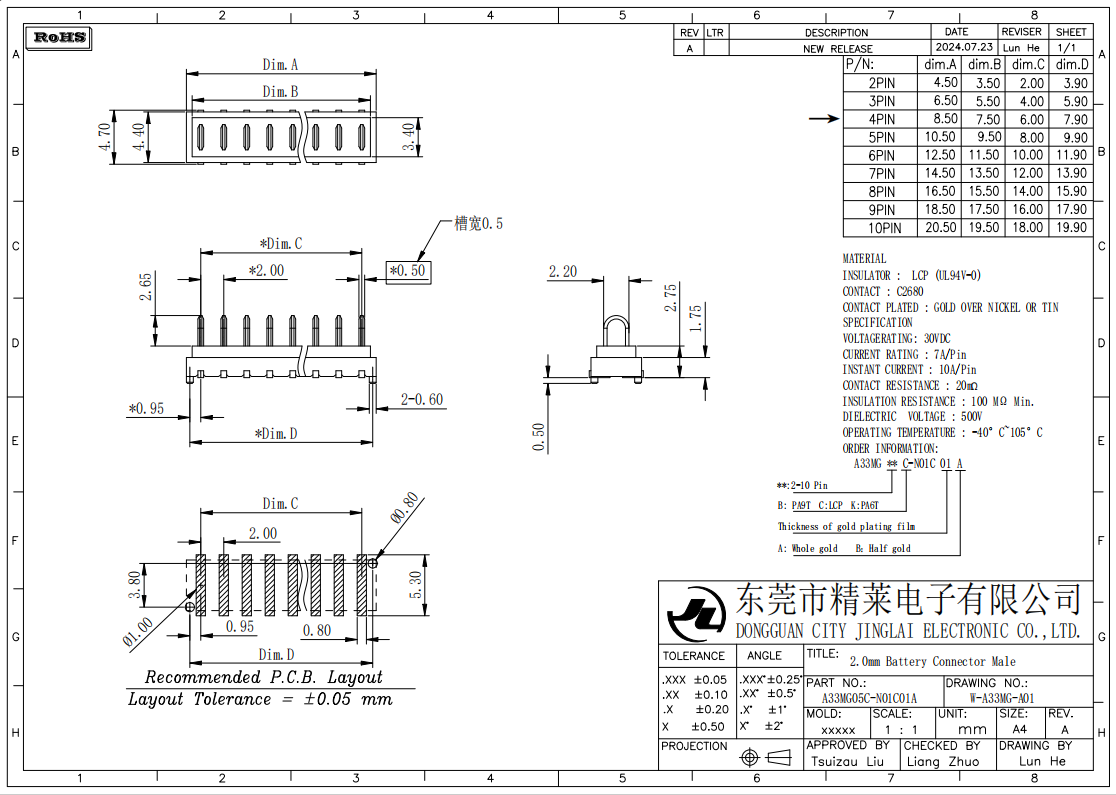

MATERIAL

INSULATOR : LCP (UL94V-0)

CONTACT : C2680

CONTACT PLATED : GOLD OVER NICKEL OR TIN

SPECIFICATION

VOLTAGERATING: 30VDC

CURRENT RATING : 7A/Pin

INSTANT CURRENT : 10A/Pin

CONTACT RESISTANCE : 20mΩ

INSULATION RESISTANCE : 100 MΩ Min.

DIELECTRIC VOLTAGE : 500V

OPERATING TEMPERATURE : -40°C~105°C
