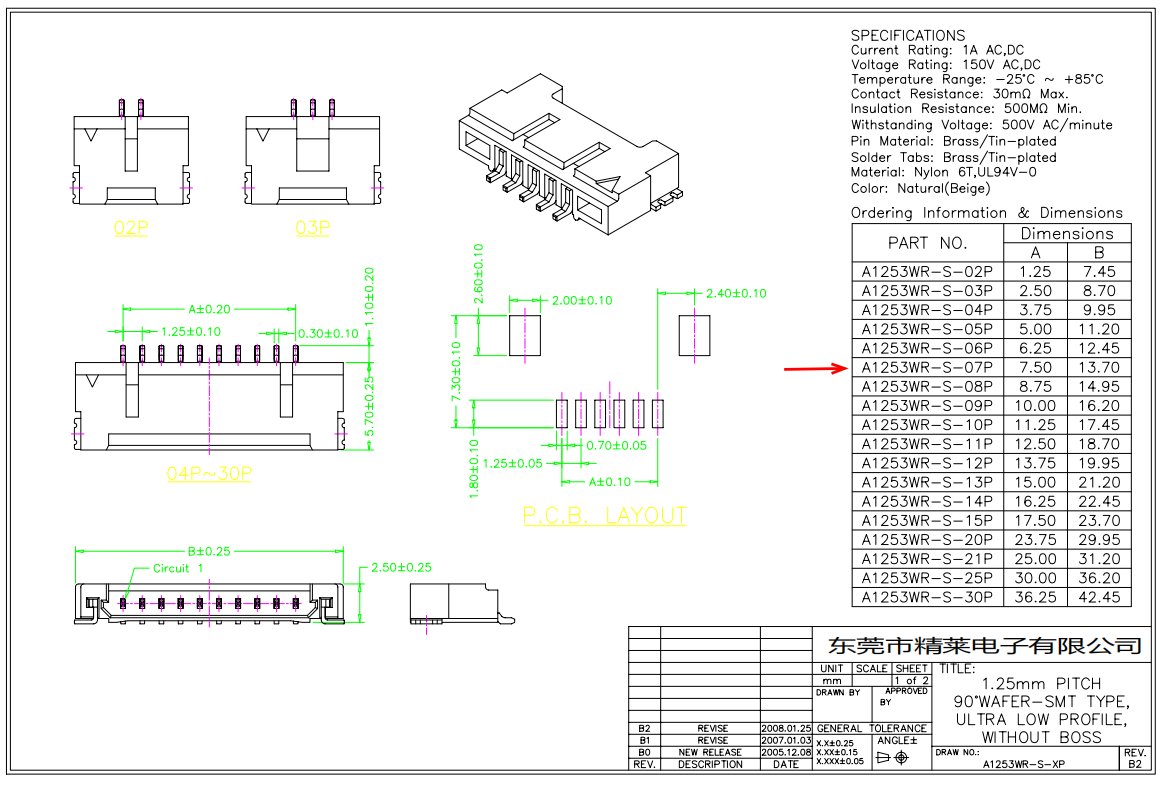

SPECIFICATIONS

Current Rating: 1A AC,DC

Voltage Rating:150V AC,DC

Temperature Range:-25℃~ +85℃

Contact Resistance:30MΩ Max.

Insulation Resistance:500MΩ Min.

Withstanding Voltage: 500V AC/minute

Pin Material: Brass/Tin-plated

Solder Tabs:Brass/Tin-plated

Materia: Nylon 6T,UL94V-0

Color: Natural(Beige)
