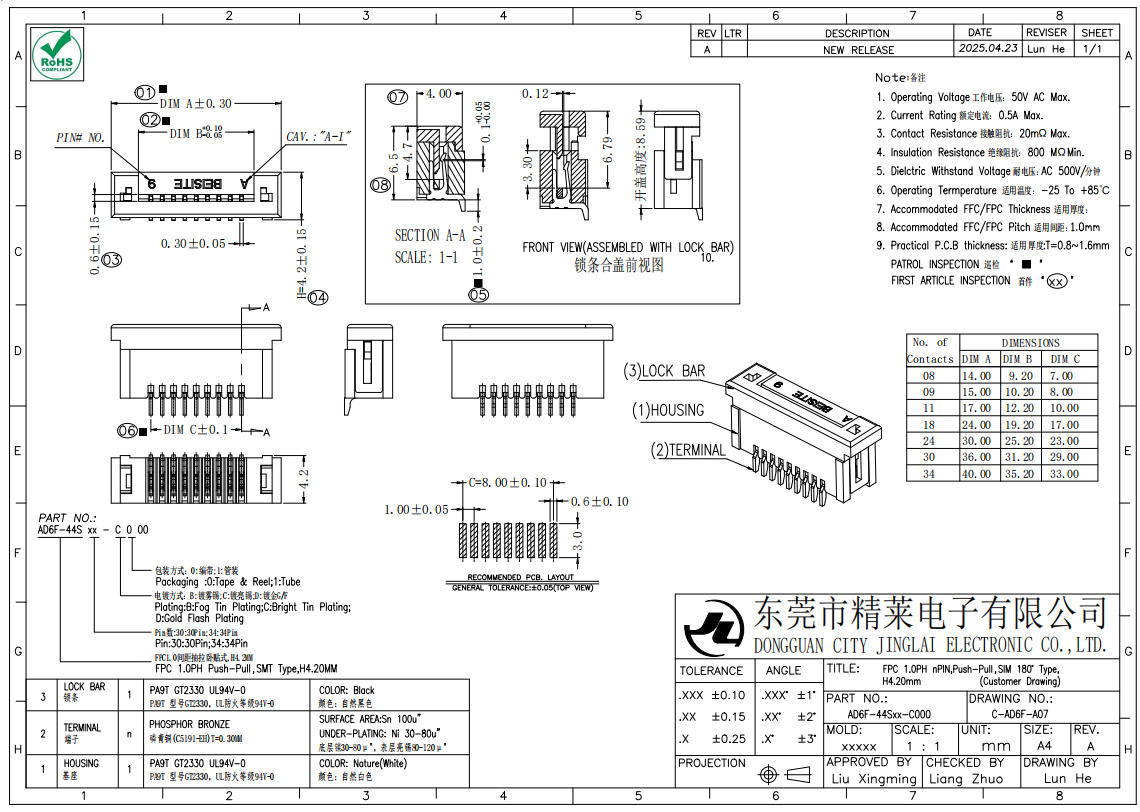

Note:备注

1.Operating Voltage 工作电压:50V AC Max.

2.Current Rating 额定电流:0.5A Max.

3.Contact Resistance 接触阻抗:20MΩ Max.

4.Insulation Resistance 绝缘阻抗:800MΩ Min.

5.Dielctric Withstand Voltage 耐电压: AC 500V/分钟

6.Operating Termperature 适用温度:-25 To +85℃

7.Accommodated FFC/FPC Thickness 适用厚度:

8.Accommodated FFC/FPC Pitch 适用间距: 1.0mm

9.Practical P.C.B thickness:适用 厚度:T=0.8~1.6mm
