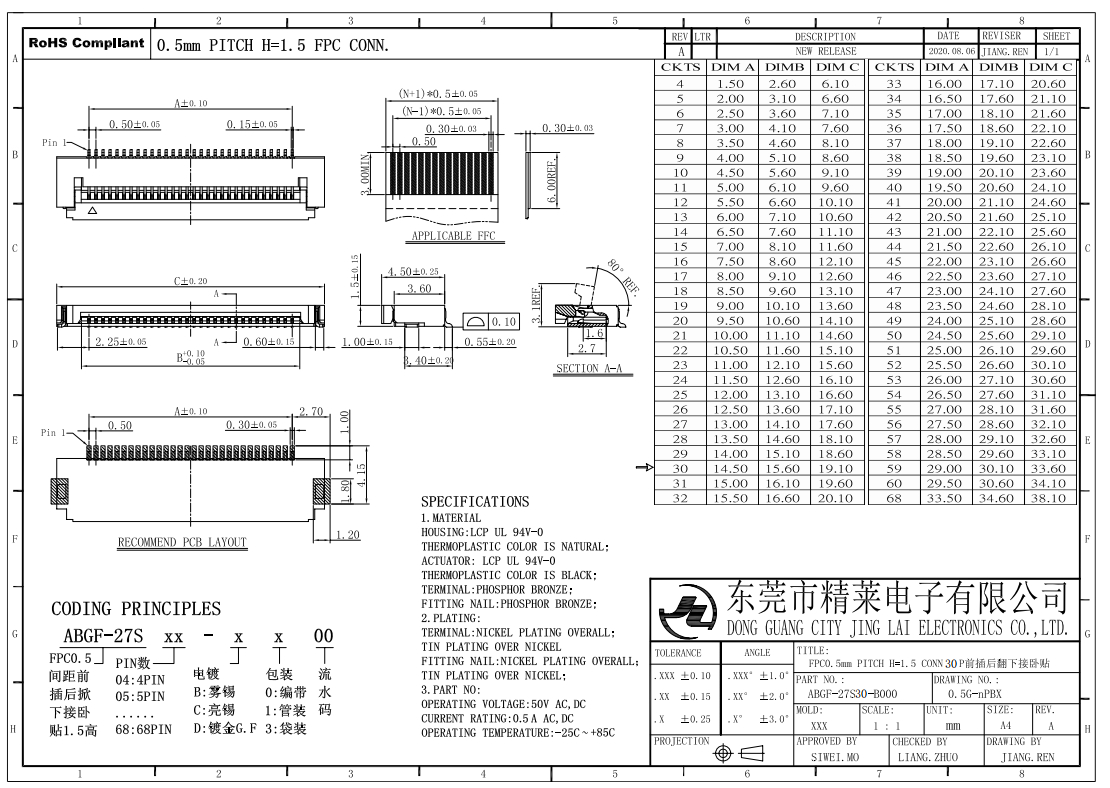

SPECIFICATIONS

1. MATERIAL

HOUSING:LCP UL 94V-0;

THERMOPLASTIC COLOR IS NATURAL;

ACTUATOR:LCP UL 94V-0

THERMOPLASTIC COLOR IS BLACK;

TERMINAL:PHOSPHOR BRONZE;

FITTING NAIL:PHOSPHOR BRONZE;

2.PLATING :

TERMINAL:NICKEL PLATING OVERALL;

TIN PLATING OVER NICKEL

FITTING NAIL:NICKEL PLATING OVERALL;

TIN PLATING OVER NICKEL;

3.PART NO:

OPERATING VOLTAGE:50V AC,DC

CURRENT RATING:0.5A AC,DC

OPERATING TEMPERATURE:-25℃~+85℃
