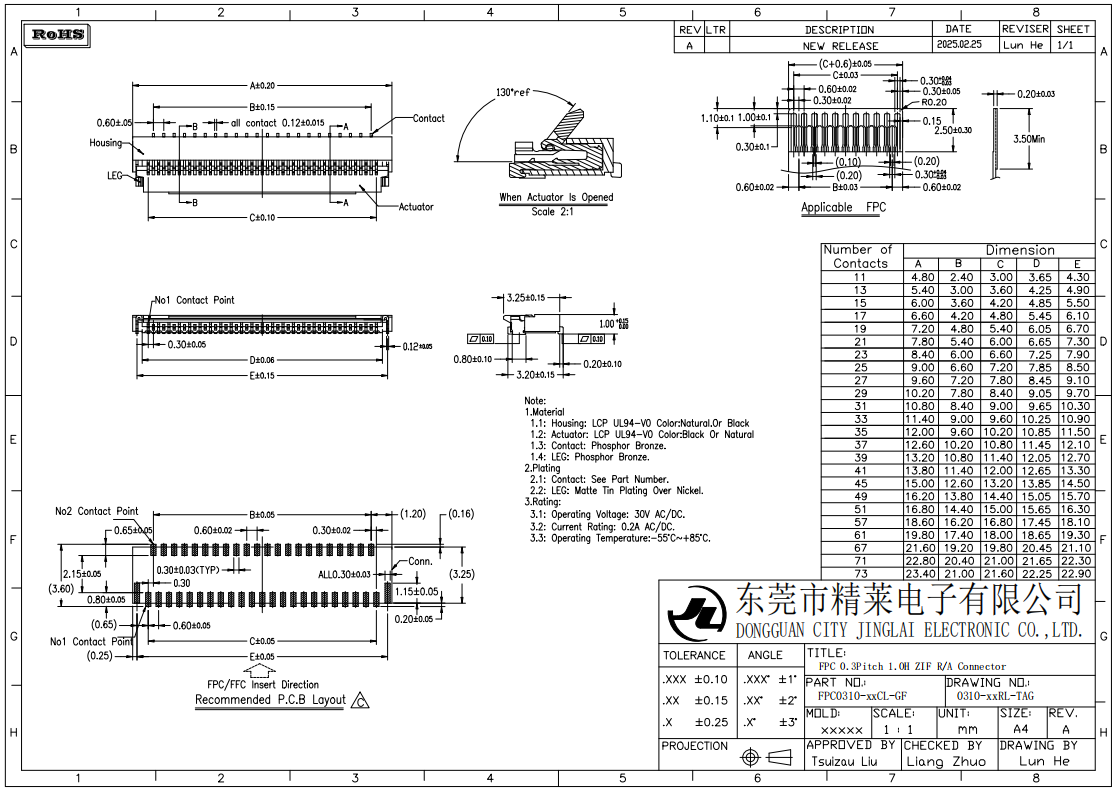

Note:

  1.Material

      1.1: Housing: LCP UL94-V0 Color:Black.

      1.2: Actuator: LCP OR PA UL94-V0 Color:Black.

      1.3: Contact: Phosphor Bronze.

      1.4: LEG: Phosphor Bronze.

  2.Plating

      2.1: Contact: See Part Number.

      2.2: LEG: Matte Tin Plating Over Nickel.

  3.Rating:

      3.1: Operating Voltage: 30V AC/DC.

      3.2: Current Rating: 0.2A AC/DC.

      3.3: Operating Temperature:-55°C~+85°C.
