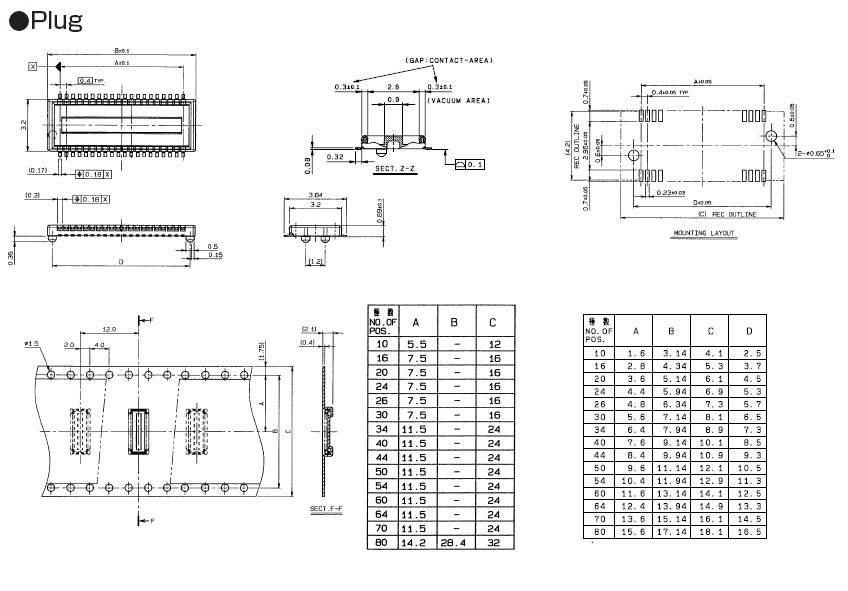

0.4mm Board to board

Main Specifications

Pitch:0.4
Ploes:2~16
Applicable wire:AWG#26~#30
Voltage rating:50V DC/AC
Current rating:3A
Withstand voltage:50-60Hz.500V.60S
Working Temperature:-50℃~105℃
Insulation resistance:≥1000MΩ
Contact resistance:≤0.02Ω
